General information

Type

CPU / Microprocessor

Family

Intel Celeron M

Model number

560

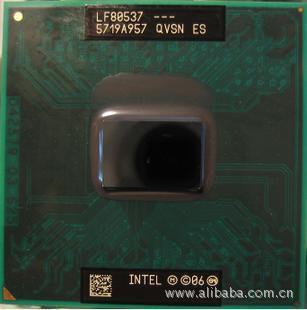

CPU part number

LF80537NE0461M (QVSN,SLA2D)

Box part number

BX80537560 (SLA2D)

Frequency (MHz)

2133

Bus speed (MHz)

533

Clock multiplier

16

Package

478-pin micro FC-PGA

Socket

Socket P

Architecture / Microarchitecture

Processor core

Merom

Core stepping

A1 (QVSN, SLA2D)

Manufacturing process

0.065 micron process with copper interconnect

Data width

64 bit

Number of cores

1

Floating Point Unit

Integrated

Level 1 cache size

32 KB instruction cache
32 KB write-back data cache

Level 2 cache size

1 MB

Features

• MMX technology
• SSE
• SSE2
• SSE3
• Supplemental SSE3
• Execute disable bit
• EM64T technology

Low power features

• Core C1/AutoHalt, C1/MWAIT, C2 and C3 modes
• Stop Grant mode
• Sleep mode
• Deep Sleep mode
• FSB low-power enhancements

Electrical/Thermal parameters

V core (V)

0.95 - 1.3

Minimum/Maximum operating temperature (°C)

0 - 100

Minimum/Maximum power dissipation (W)

26.41 (Deep Sleep mode) / 45.31

Thermal Design Power (W)

27
31

Notes on Intel LF80537NE0461M

• Bus frequency is 133 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 533 MHz
